How It Operates
Wastewater is pumped to the tube side of the heat exchanger.
Fresh water enters the heat exchanger shell and flows around
the tubes in a direction counterflow to the wastewater within
the tubes. As the fluids pass one another in opposing directions,
heat is transferred through the walls of the stainless steel
tubing preheating process water typically to over 100ºf.
The cooled wastewater can be reused, recycled, treated or
discharged.
|

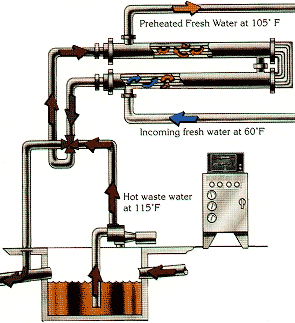

The Inside Operations of the Wastewater Heat Recovery
system. |
|
